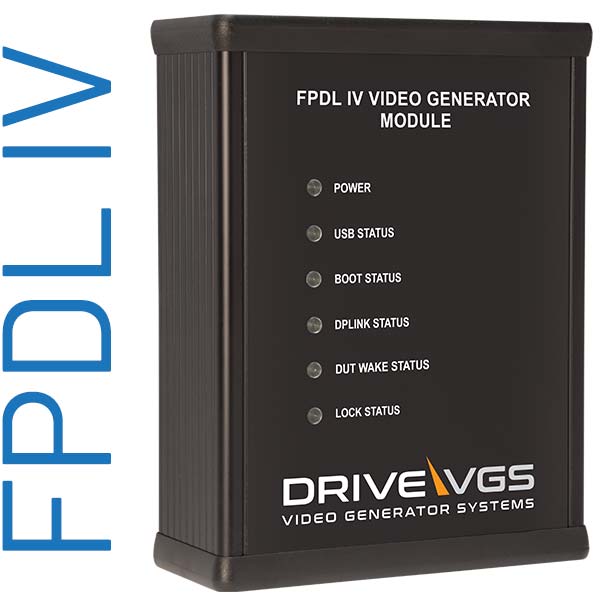

FPDL IV
The DRIVE/VGS FPDL IV is optimized for high-definition video transmission in any type of display.
FPDL IV – Key Features & Specifications:
| Output Type | FPDL4, FPDL3 Backward compatablity support. |
|---|---|
| Architecture | Single Board computer (SBC) based design |
| Storage | Internal flash 5GB |
| Daisy chain | Yes (not Multi-stream) |
| Serializer used | DS90UB983 (Display port Input) |
| Compatible De-serializer | FPDL IV Des :DS90Ux988, DS90Ux948, DS90Ux688, DS90Ux684 |
| Resolution Supported | System supported up to 4K @ 60Hz |
| Pixel Frequency | Max 533.25 MHz |
| Frame Rate | up to 60 FPS |
| Color Depth | 24 Bit |
| Configurable resolution depending on frame rate | Yes (based on VESA EDID specification) |
| Interconnect support | Coax or STP |
| Interface method | GUI, API, Command line |
| Back channel / Sideband communication | Yes (I2C) |
| Host (PC) Interface | USB2.0, Ethernet |
| Digital IO | 3 Outputs (12V ,20 mA) |
| Data logging | Yes |
| GUI Customization | Request / Review |
| Wake-up Over LVDS | Yes |
| Supply Voltage | 9V to 16V DC |
| Temperature Range | 0 to 50°C |
| Cooling | Active cooling |
| Dimension (mm) | 160 x 125 x 52 |
